AutoCAD: Quick Tip – Isolate Layers


2018-07-23_10h06_54In AutoCAD you can hide all but the selected layer.

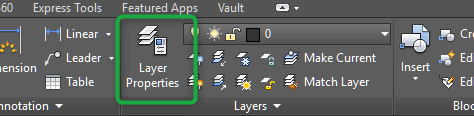

From “Layer Properties”

autocad isolate layer 1

Right Click on the layer you wish to show,  and select “Isolate selected layers”. This will turn off all layers except the layer(s) that you have selected.

Isolate layer in AutoCAD

To turn all of the layers back on, use a “shift select” to select all of the layers in the “Layer Properties” box and then toggle their visibility by clicking on one of the light bulbs.
