Inventor 2020.1: Frame Generator Copy Properties Update

@ClintBrown3D Autodesk Inventor 05

The “Copy Properties eye dropper” has been updated in Inventor 2020.1’s Frame Generator Environment, making the copying of properties from one frame member to another much easier.

Here is the workflow, I’ve included and animated GIF below to show it working!

  • Select the frame members you want to change.
  • Click the eye dropper
  • Choose the frame member to copy properties from.
  • Select the frame member to copy to – The copied properties are applied in the preview, you can continue to select new members to change.
  • Click OK or Apply to finish.

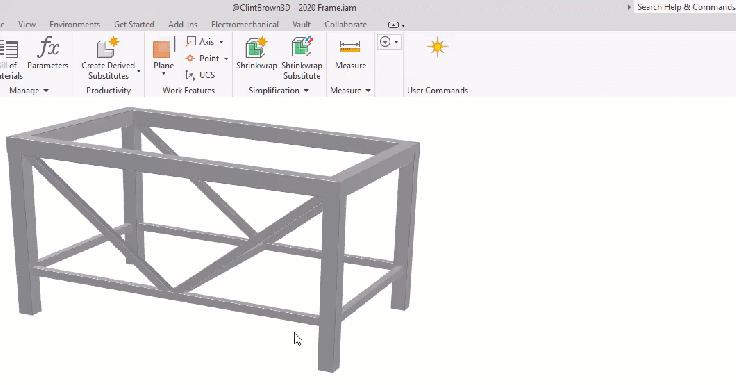

Frame update 2020.1.gif
