AutoCAD Basics: Display Lineweight on Screen

clint brown autocad tip

You may wish to display the lineweight thicknesses in your model space within AutoCAD, or you may wish to turn off lineweight thickness in AutoCAD.

Simply type LW into your command line.

To Turn on lineweights. In the “Lineweight Settings” dialogue box, tick “Display Lineweight” as shown below. With this setting un-ticked the lineweights will not display.

autocad lineweight display 2

Below is the result with Display Lineweight” ticked.

autocad lineweight display 3

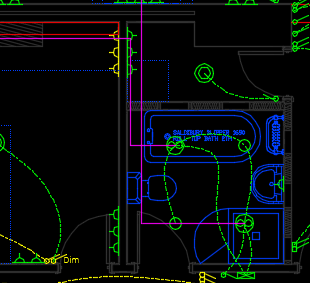

Below is the result with Display Lineweight” unticked.

autocad lineweight display 1
