Understanding Units in AutoCAD

2018-09-12_14h48_08For a little insight into the header image of this article (the story of the over-sized trophy), follow this link

Setting your Units of Measure in AutoCAD is relatively straightforward.

To check the current .dwg file’s units, simply type UNITS into your command line, then choose the units of measure that you wish to use.

2018-09-12_14h44_39

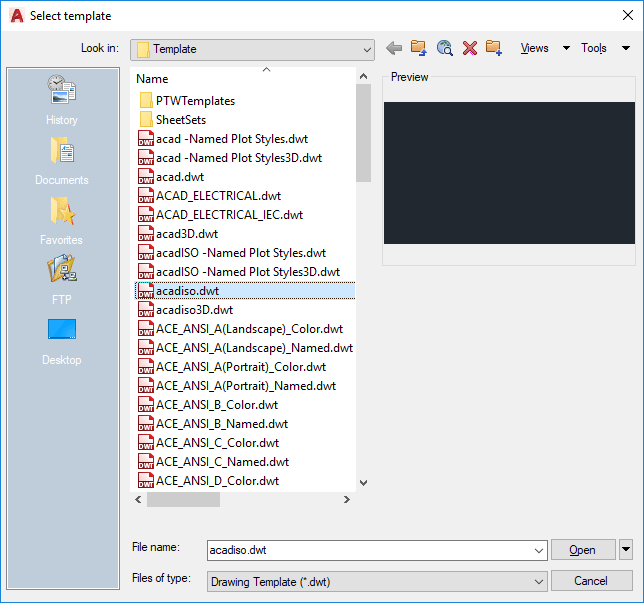

When creating a new drawing in AutoCAD, it is important to start with the correct template.

For a Metric (millimetre) template file, select acadiso.dwt

For an Imperial (inch) template file, select acad.dwt

autocad units - template file
