Understanding Units in Fusion 360

2018-09-14_07h31_46For a little insight into the header image of this article (the story of the over-sized trophy), follow this link

Setting your Units of Measure in Fusion 360 is really easy.

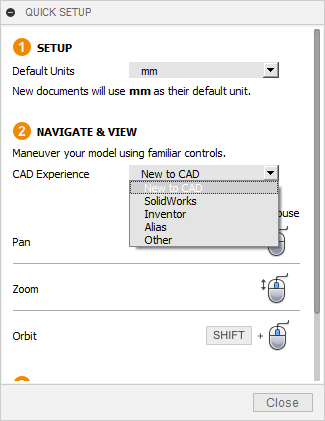

When you first install the software, you will see a pop up in the bottom right hand corner of the screen, asking you to choose your preference for “Default Units” as well as “CAD Experience”

2018-09-14_07h18_40

To change the units later on, simply go to to “Preferences“. Click on your user name in the top right hand corner, then click on the drop-down arrow and select “Preferences“.

2018-09-14_07h20_08

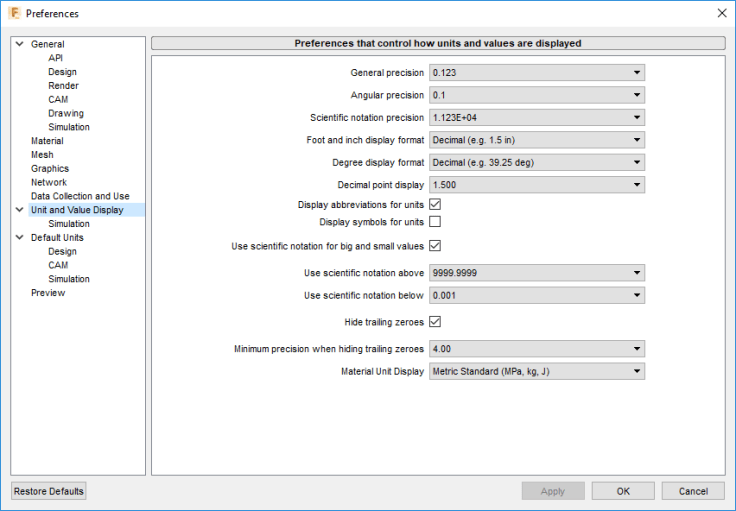

In the “Preferences” Dialogue box, click on “Units and Value Display“, you can select your chosen units.

2018-09-14_07h20_24
