Enabling 3D Content in PDF’s

@ClintBrown3D Autodesk Inventor enable 3D PDF

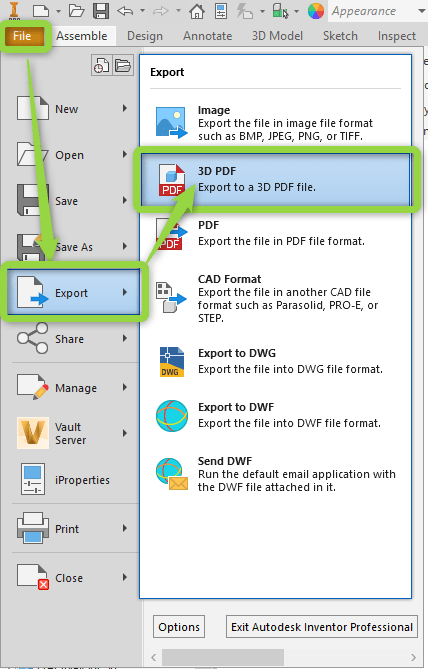

3D CAD Packages like Autodesk Inventor can easily export out 3D PDF’s for sharing and collaboration. Generally the person receiving the 3D PDF does not have a CAD system, making this a good way of sharing 3D information.

@ClintBrown3D Autodesk Inventor 11

The problem, is that by default Adobe Reader DC blocks 3D content in PDF’s. The good news is that this is relatively simple to fix.

To temporarily allow 3D content, simply click on the “Options” drop down and select one of the options, which will enable “trust”.

You will need to do this every time you open a 3D PDF, if you are going to be opening a lot of 3D PDF’s keep reading!

@ClintBrown3D Autodesk Inventor 08

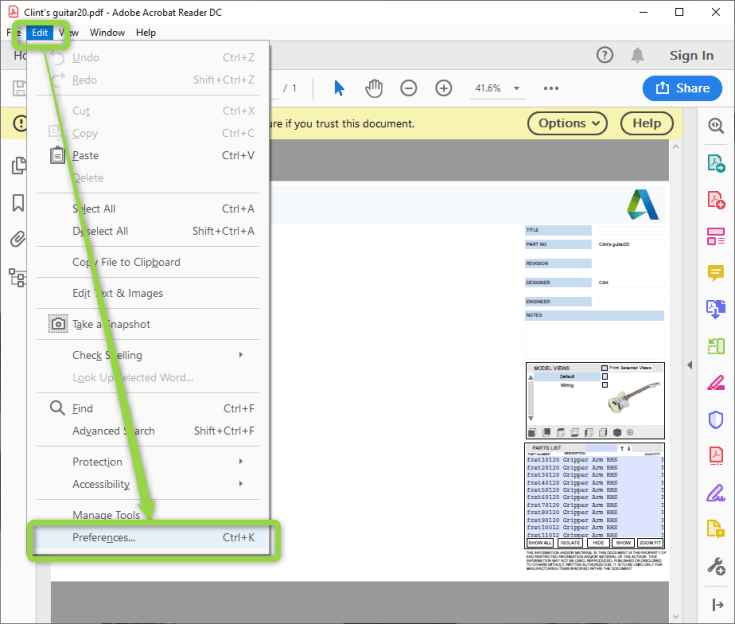

To always allow 3D content, click on “Edit”, then “Preferences”

@ClintBrown3D Autodesk Inventor 18

Locate “3D & Multimedia” and check the “Enable playing of 3D content”, click “OK”

@ClintBrown3D Autodesk Inventor 09

Restart Your Adobe Reader, the next 3D PDF that is opened in the Adobe Reader will automatically have the 3D content Enabled.


Note: Adobe Reader DC are either registered trademarks or trademarks of Adobe in the United States and/or other countries.
